Upgraded 24V 100W Greenhouse Roll Up Motor & Climbing Device - Waterproof Automatic Shading & Ventilation System for Greenhouses, Plant Nurseries, and Hydroponic Gardens
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:7 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:92096516
Product Description

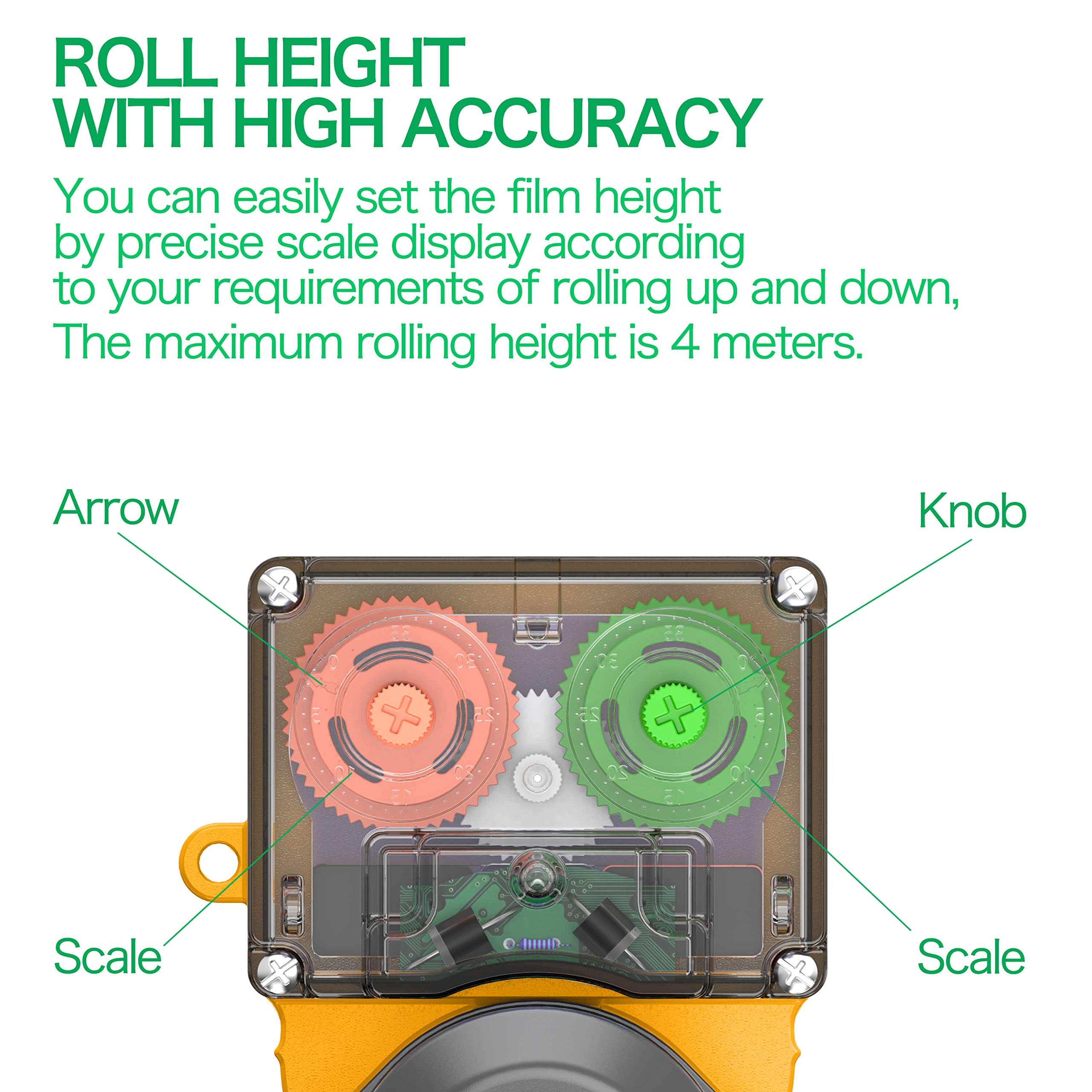

Limit Switch Adjustment Steps of Electric Film Roll Up Motor: 1, Fix the film rolling motor device in the middle position of the film and turn on the power to make the motor run. Change the motor steering several times to test whether the motor works normally. 2, The roll drive shaft can rotate up to about 40 turns(about 10 minutes). When using a 25mm roll film tube, the roll film width is about 4m. 3, When the product leaves the factory, the red button and green button are set to 0, When the 25mm film tube is used as the driving shaft, the height of the rolled film of each large grid film is about 0.08m,the height of the rolling film is 1m for every 10 divisions of the rolled film tube. 4, Open the waterproof cover, press the adjustment knob slightly and turn it to the position at the width of the roll film. 5, After the limit switch is adjusted, run it several times to test whether it works normally and adjust to the optimal working position at the same time. 6, Don’t make any change after the adjustment.
Product Features

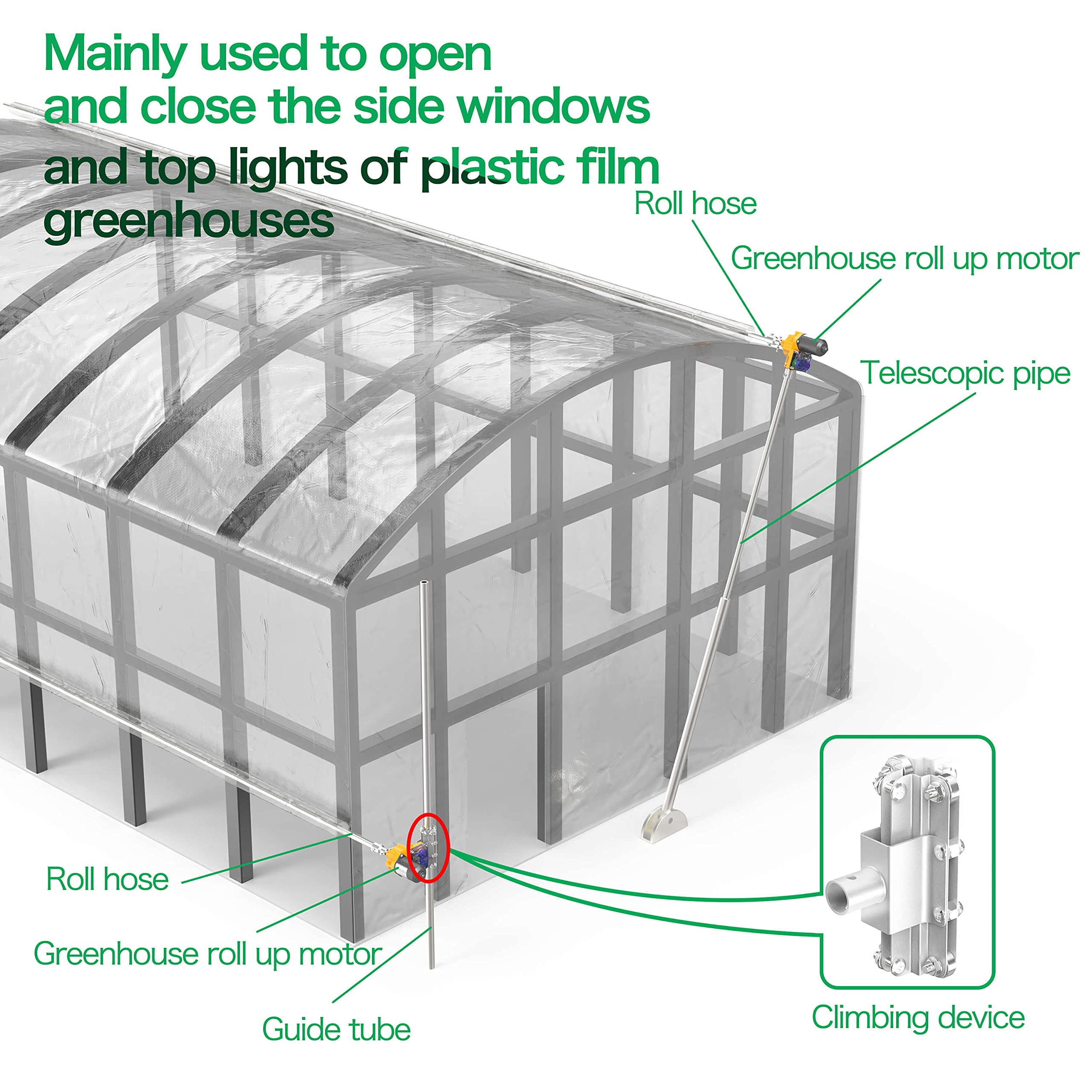

DC 24v 100w Greenhouse roll up motor is suitable for most of the greenhouse film requirements, winding distance is about 100 meters and film height is less than or equal to 4 meters，mainly used for open and close the side and top windows of greenhouses.
Roll up motor + Climber - Our electric greenhouse roll up motor low noise, light weight with strong torque; Accurate limit switch and built-in power-off protection device.
Waterproof - The body of the Greenhouse roll up motor is made of high quality aluminum alloy, its surface is made of anti-rust and anti-corrosion coating. The inside is high hardness gear steel with large. strength and continuous teeth. This machine equipshigh working efficiency, stable performance, and its service life is over 4years.

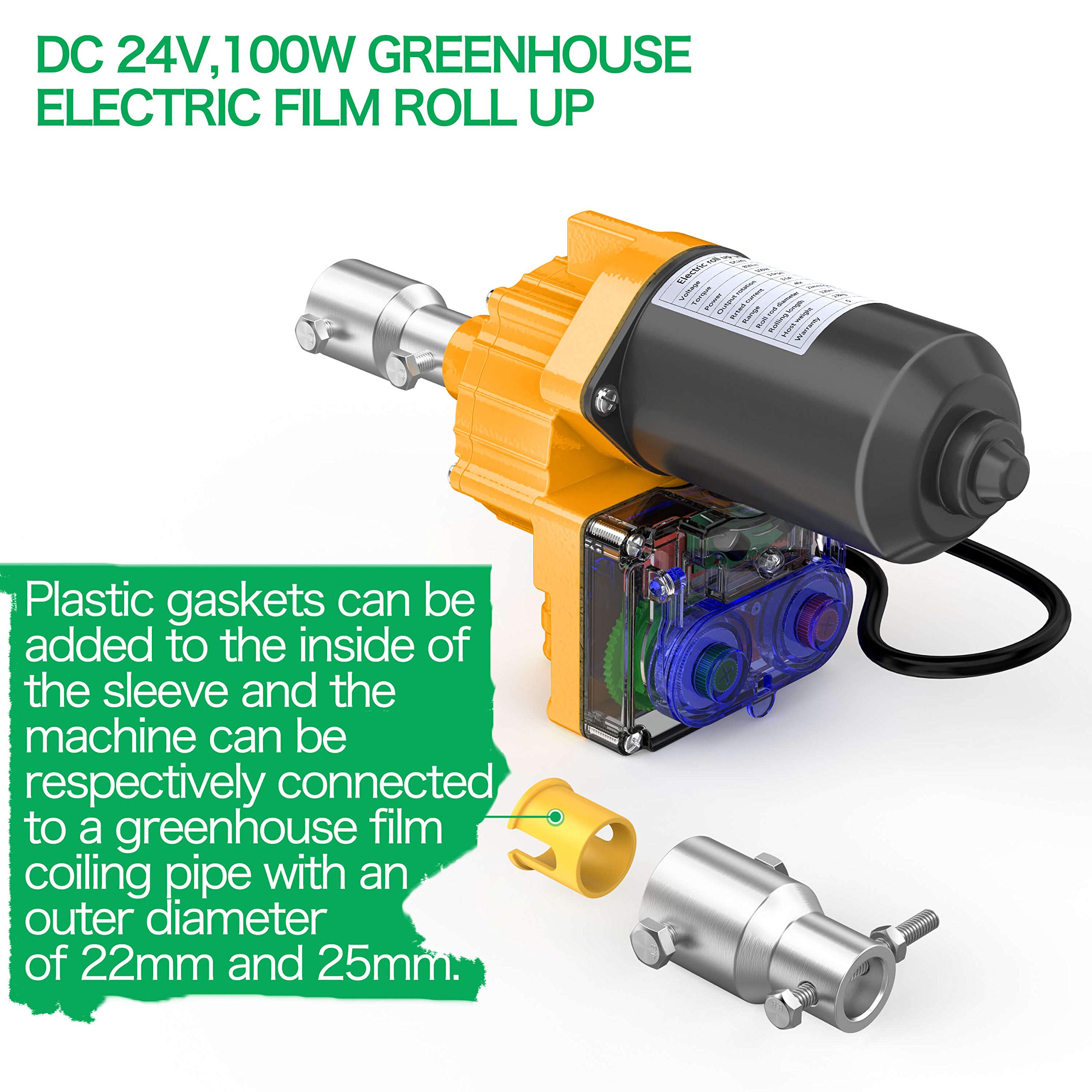

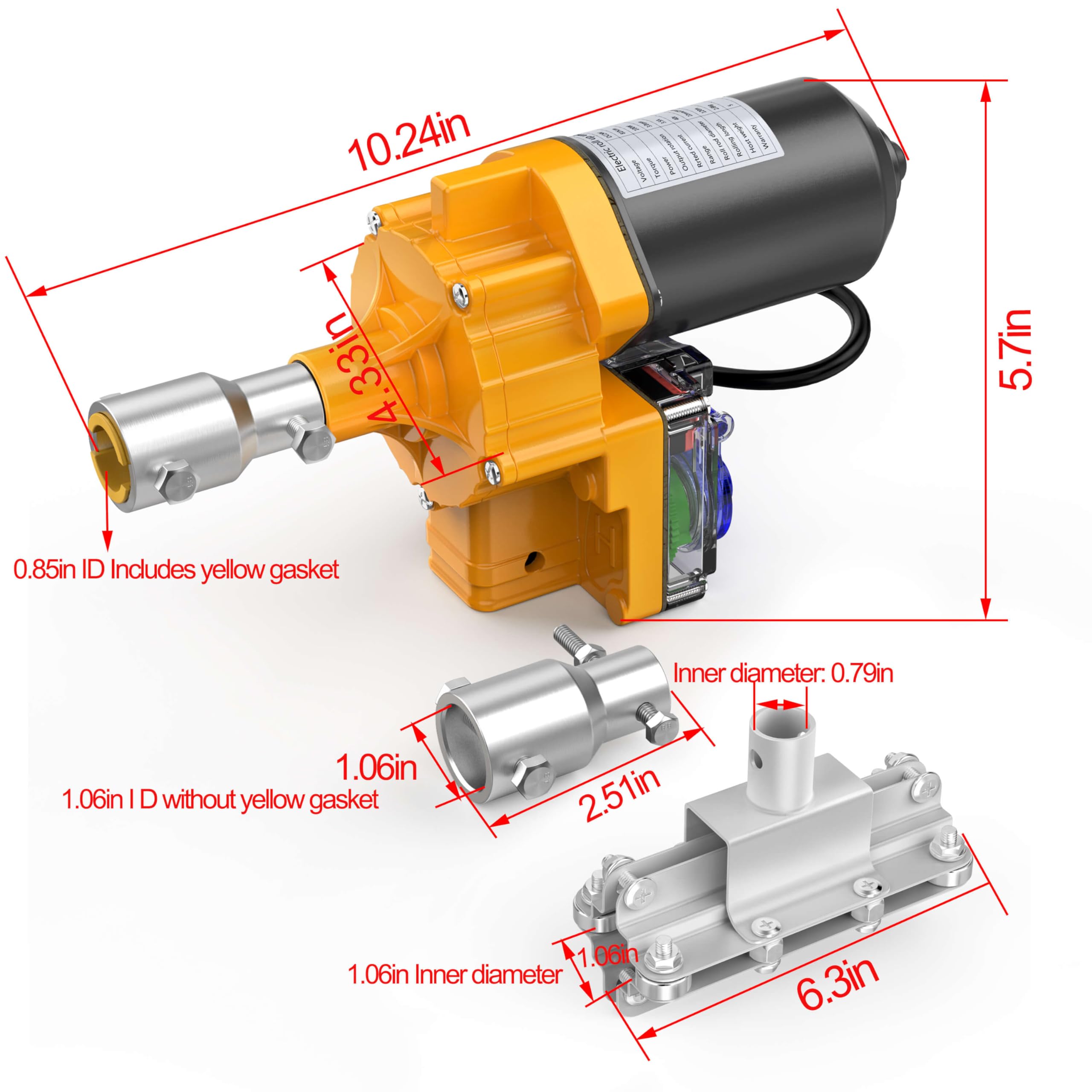

The Greenhouse roll up motor with two connecting sleeves. Considering the different diameters of greenhouse pipes, plastic gaskets can be added to the inside of the sleeve and the machine can be respectively connected to a greenhouse film coiling pipe with an outer diameter of 22mm and 25mm.
Greenhouse electric film rolling machine is widely used in breeding greenhouse, vegetable greenhouses, plastic greenhouses, flower greenhouses and other greenhouse shading ventilation system.

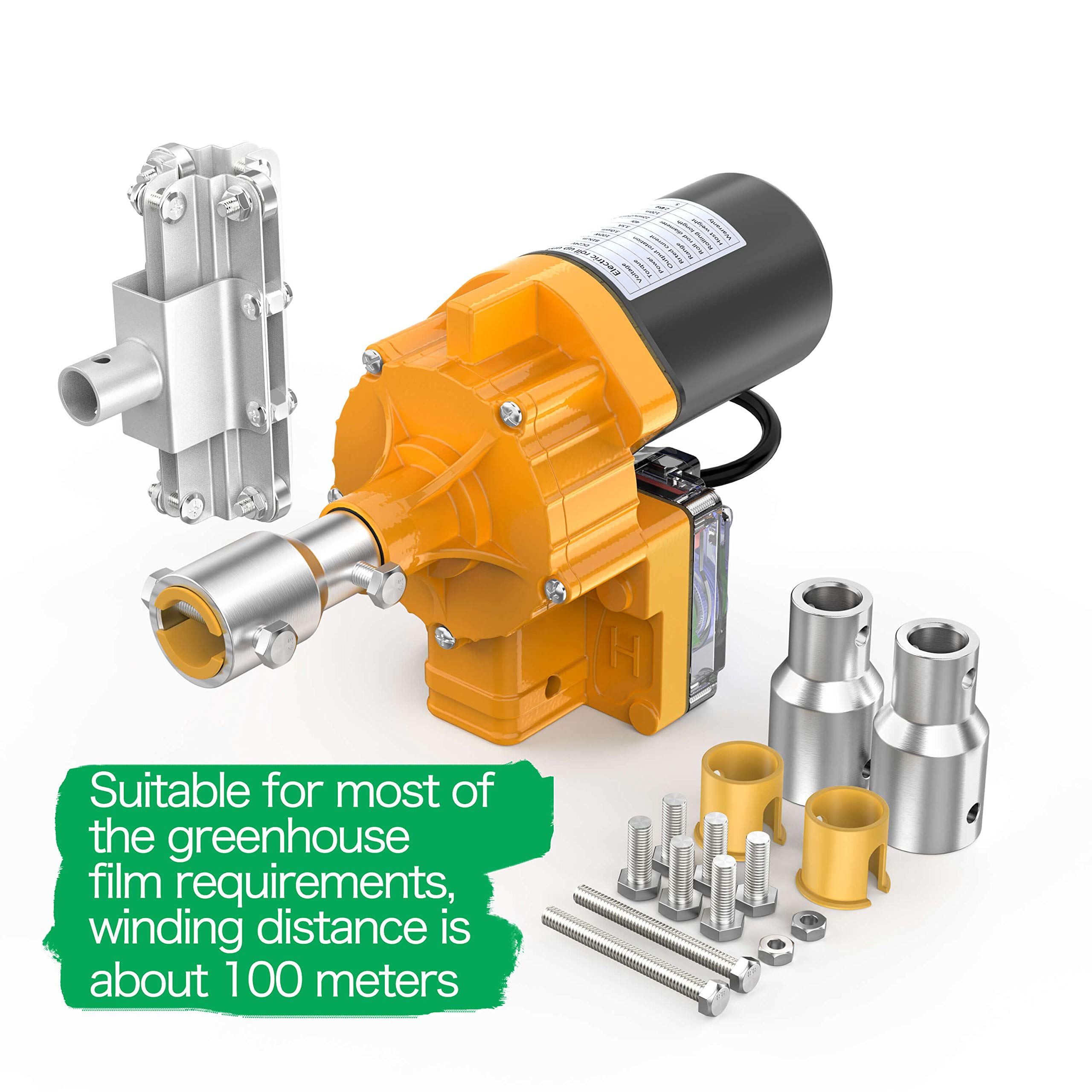

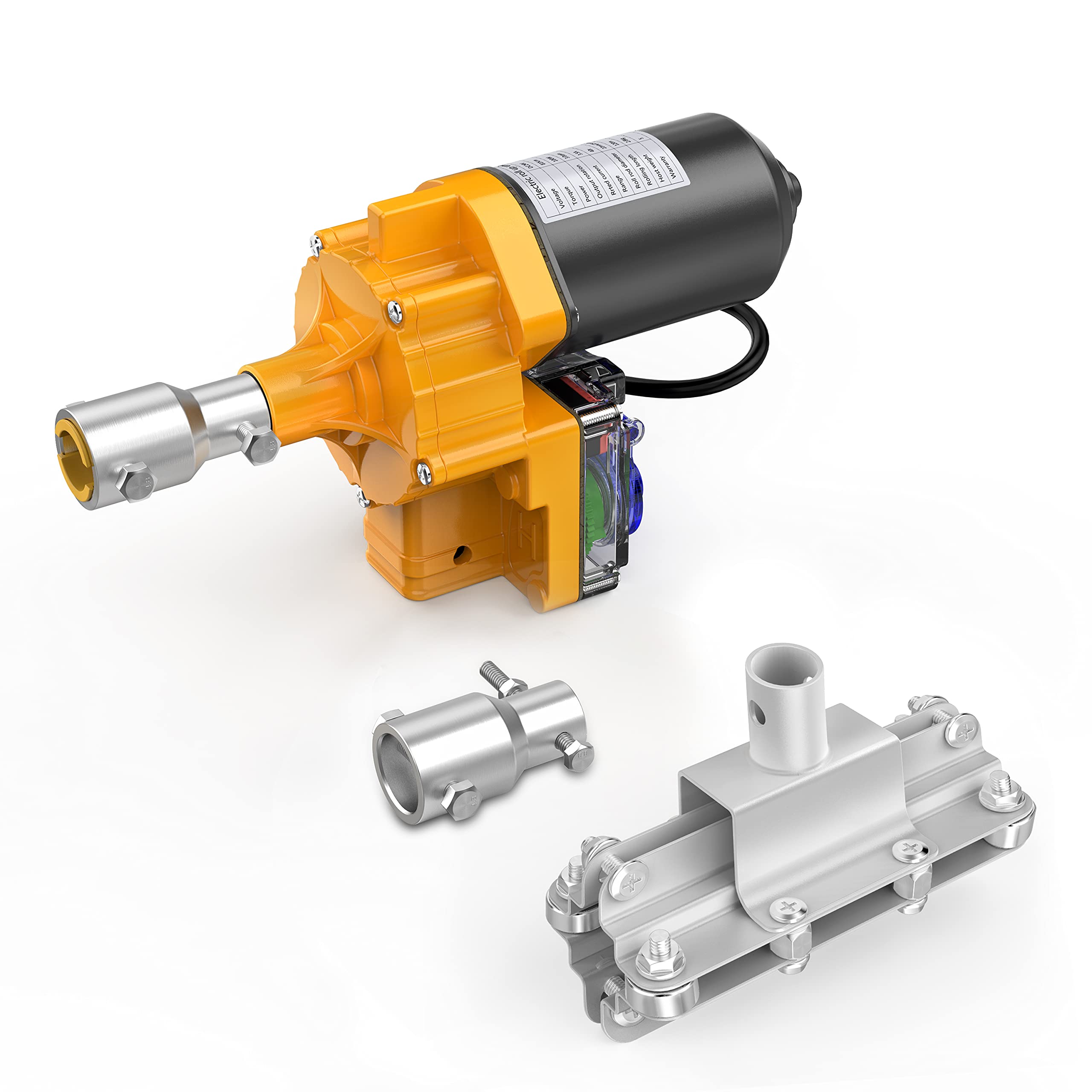

This set contains a greenhouse side ventilation creeper.
